Product details

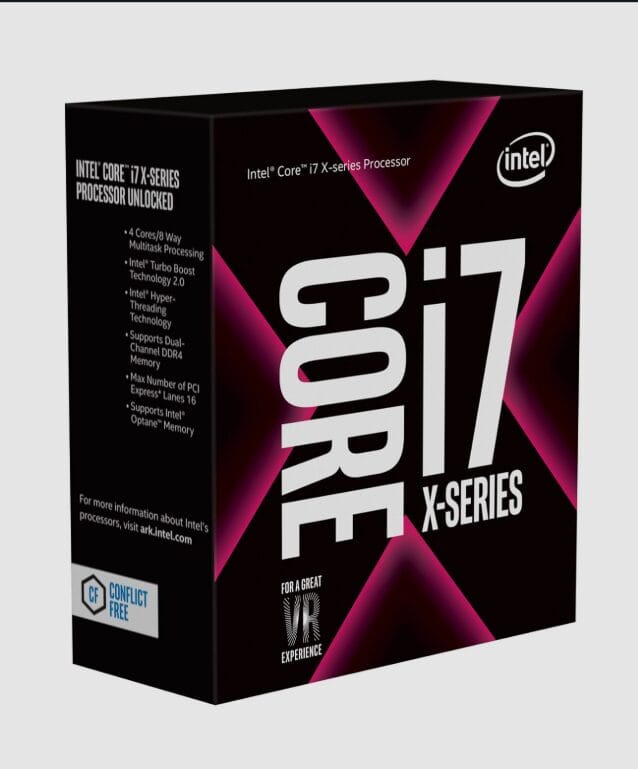

The Intel® Core™ i7-7740X is a high-end desktop (HEDT) processor from the “Kaby Lake-X” family, released in 2017. It was a unique and somewhat controversial release because it brought mainstream quad-core architecture to Intel’s enthusiast X299 platform.
Unlike the “Skylake-X” chips released alongside it, the i7-7740X is essentially a highly binned i7-7700K adapted for the LGA 2066 socket, stripped of integrated graphics to allow for better thermal headroom and overclocking.
Core & Clock Speed Specs
| Feature | Specification |
| Total Cores | 4 |
| Total Threads | 8 |
| Base Clock Speed | 4.30 GHz |
| Max Turbo Frequency | 4.50 GHz |
| Intel® Smart Cache (L3) | 8 MB |
| Lithography | 14 nm |
Memory & Expansion
Memory Support: Up to 64 GB of DDR4-2666.
Memory Channels: Dual-channel (Note: Even though X299 motherboards support quad-channel, this specific CPU is limited to dual-channel).
PCI Express Revision: 3.0.
Max PCI Express Lanes: 16 lanes (Limitation of the Kaby Lake-X architecture).
Power & Thermal
Thermal Design Power (TDP): 112 W (Higher than the 91W of the i7-7700K to provide more overclocking stability).
Socket: FCLGA2066.
Integrated Graphics: None (Discrete GPU required).
