GIGABYTE GeForce RTX­ 4060 GAMING OC 8G

Unleash your gaming potential with the GIGABYTE GeForce RTX 4060 GAMING OC 8G. Equipped with 8GB of GDDR6 memory, this powerful GPU features advanced ray tracing, DLSS 3.0, and a WINDFORCE 3X cooling system for optimal performance and temperature control. Perfect for 1080p gaming, it supports the latest NVIDIA technologies, ensuring smooth gameplay and stunning visuals. With customizable RGB Fusion 2.0 lighting and dual BIOS options, this graphics card offers both style and versatility. Upgrade your gaming rig with the GIGABYTE RTX 4060 and experience next-level graphics.

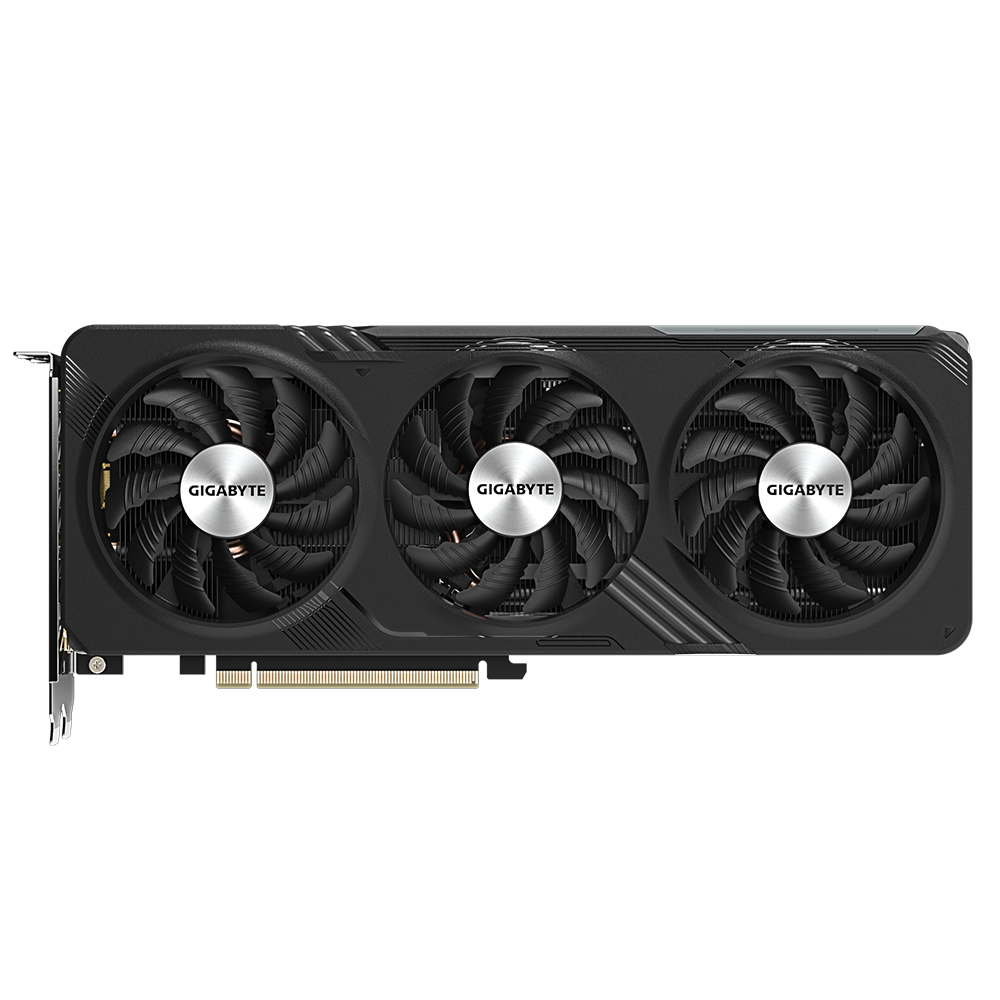

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

The GIGABYTE GeForce RTX 4060 GAMING OC 8G is a high-performance graphics card designed for gaming and other demanding applications. Here are its key specifications:

Core Specs

• GPU: NVIDIA GeForce RTX 4060
• CUDA Cores: 3,072
• Base Clock: 2,475 MHz
• Boost Clock: 2,565 MHz (OC Mode)

Memory

• Memory Size: 8GB GDDR6
• Memory Interface: 128-bit
• Memory Speed: 17 Gbps
• Memory Bandwidth: 272 GB/s

Cooling

• Cooling System: WINDFORCE 3X cooling system with alternate spinning fans
• Fans: 3x 80mm fans
• Heat Pipes: Composite copper heat pipes with direct contact to the GPU

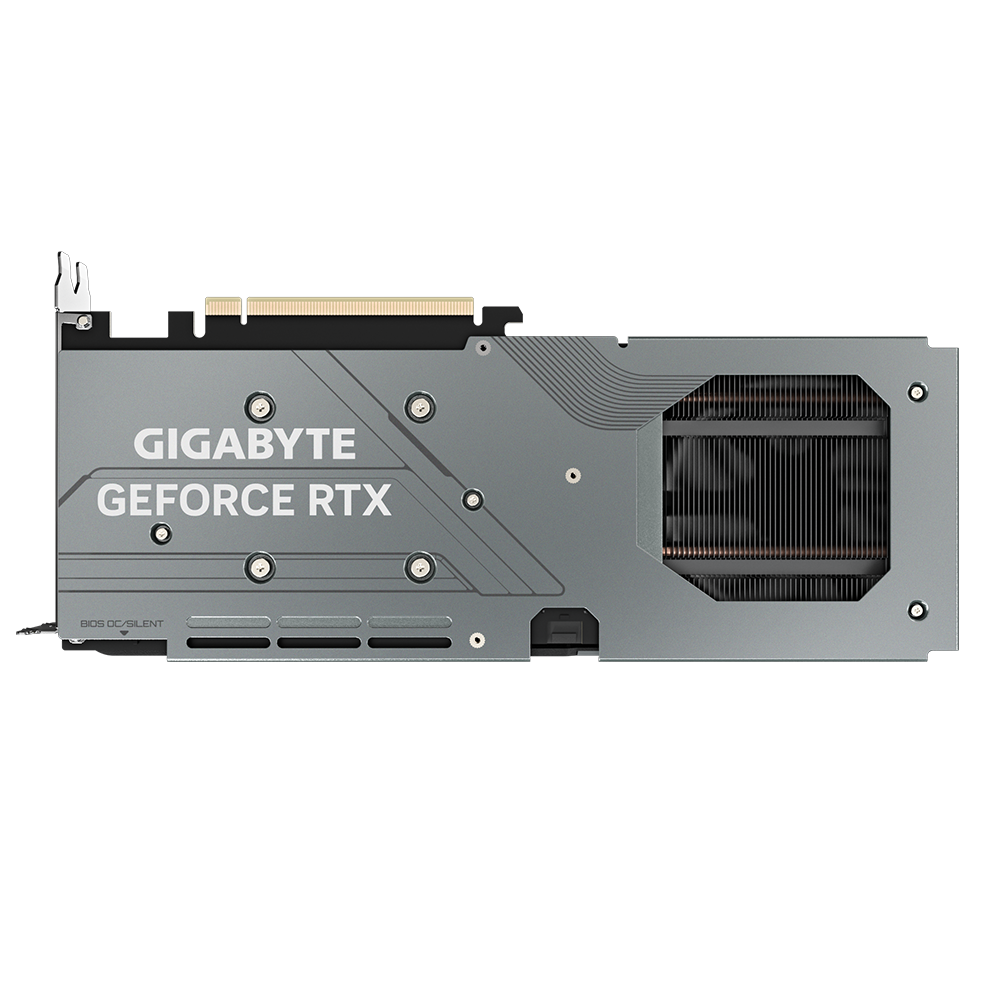

• Backplate: Metal backplate for added rigidity and cooling

Ray Tracing and AI

• Ray Tracing Cores: 3rd Generation
• Tensor Cores: 4th Generation
• DLSS: NVIDIA DLSS 3.0 support

Interface

• PCI Express: PCI-E 4.0 x16
• Outputs:
  • 2 x HDMI 2.1
  • 2 x DisplayPort 1.4a
• Maximum Digital Resolution: 7680×4320 (8K UHD)

Power and Thermal

• Power Consumption: 115W
• Recommended PSU: 500W or greater
• Power Connector: 1 x 8-pin

Dimensions

• Card Size: L=282mm, W=117mm, H=41mm

Additional Features

• RGB Fusion 2.0: Customizable RGB lighting
• Dual BIOS: Silent and OC modes
• Support for NVIDIA technologies: G-SYNC, GPU Boost, Game Ready Drivers, and more

These specs make the GIGABYTE GeForce RTX 4060 GAMING OC 8G an excellent choice for gamers looking for strong 1080p performance and advanced features like ray tracing and DLSS.
