Product details

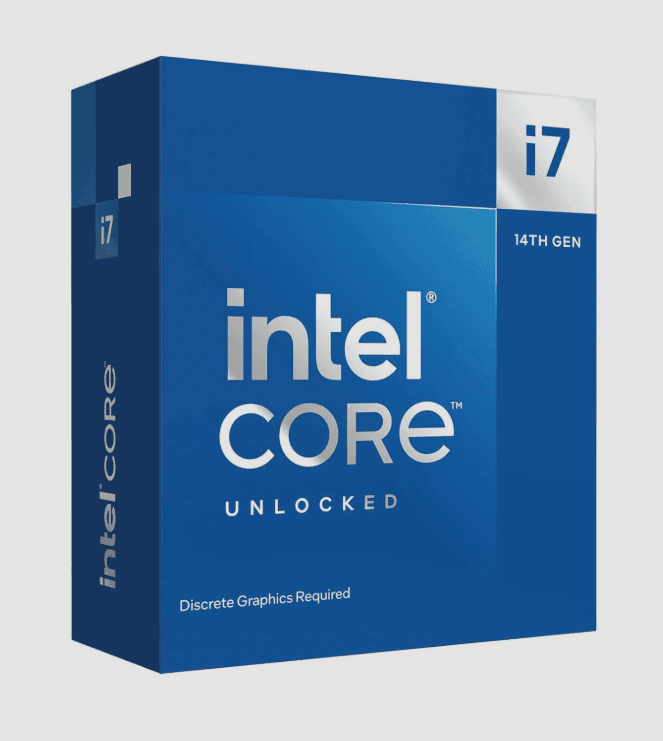

The Intel® Core™ i7-14700KF is a powerful high-end desktop processor from the 14th Gen “Raptor Lake Refresh” lineup. It is unique in this generation because it received a significant core count increase compared to its predecessor (the i7-13700K), adding four additional Efficient-cores (E-cores) for better multitasking.
As a “KF” series processor, it features an unlocked multiplier for overclocking but lacks integrated graphics, making a dedicated graphics card mandatory.
Core & Clock Speed Specs
| Feature | Specification |
| Total Cores | 20 (8 Performance-cores + 12 Efficient-cores) |
| Total Threads | 28 |
| Max Turbo Frequency | 5.60 GHz |
| P-core Max Turbo | 5.50 GHz |
| E-core Max Turbo | 4.30 GHz |
| P-core Base Frequency | 3.40 GHz |
| E-core Base Frequency | 2.50 GHz |
| Intel® Smart Cache (L3) | 33 MB |
| Total L2 Cache | 28 MB |
Power & Thermal Requirements
Processor Base Power (TDP): 125 W
Maximum Turbo Power: 253 W
Cooling Note: Like the i9 series, the i7-14700KF runs very hot under full load. A high-performance 280mm or 360mm AIO liquid cooler is highly recommended to prevent thermal throttling.
TJUNCTION (Max Temp): 100°C
Memory & Connectivity
Max Memory Size: 192 GB
Memory Support:
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
PCI Express Revision: 5.0 and 4.0 (Up to 20 lanes)
Socket: LGA1700 (Compatible with 600 and 700 series motherboards)
